Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: CHADI
  • Model Number: CDP
  • Phase: Single Phase
  • Protection: IP20
  • Weight: 75-100
  • Output Voltage: Single phase 220V±1%
  • Type: On-line
  • Application: Security / Monitoring / Alarm
  • Main Features: 3-proof technique
  • Main Features 2: comprehenvise pretection
  • Main Features 3: DSP full digitalized control
  • Main Features 4: enviromental protection and energy-saving
  • Main Features 5: friendly computer-human interface
  • Main Features 6: Superior loading characteristics
  • Main Features 7: High power dynamic performance
  • Main Features 8: Auto re-start function
  • Main Features 9: 3-phases control seperately
  • Main Features 10: super wide input voltage range

Packaging & Delivery

Packaging Details Carton/Wooden case/pallet
Delivery Time 1 day

Specifications

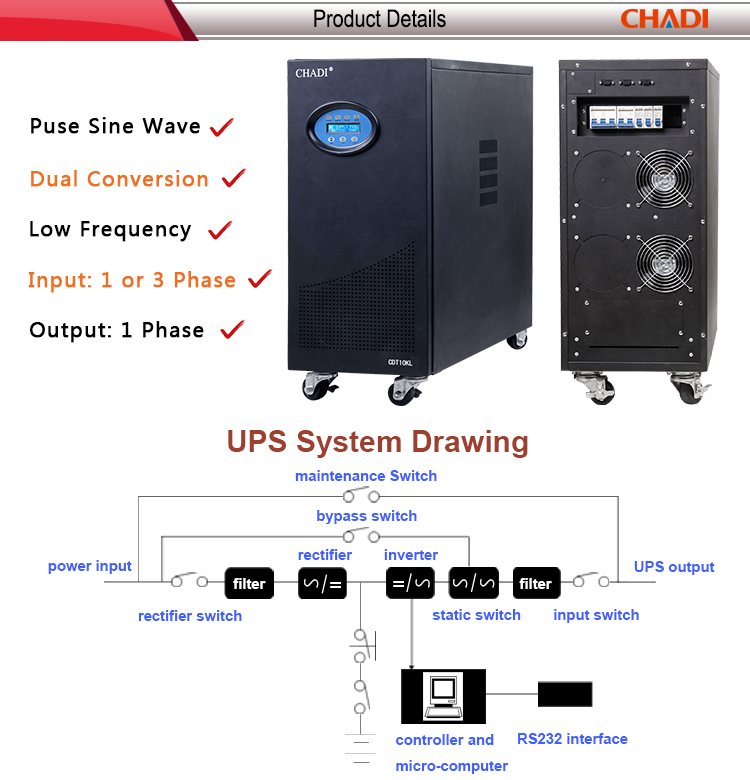

10KVA Online Ups
1.Pure sine wave,Dual Conversion
2.Low Frequency
3.Single phase input,Single phase output
4.2KVA-15KVA

Long Time Backup Pure Sine Wave 2KVA/5KVA /6KVA/10KVA Online Ups

Product Description

Brief Introduction
CHADI CDP series UPS is single input, single output line interactive type UPS, capacity ranged from 2KVAto 15KVA, using full digitalized controlled technology, with the complete detection, protection function, with output isolated transformer, every parameter index possess first level reliability. It complies with standard RS232 portal, optional SNMP internet adaptor or RS485 card, can realize centralized monitoring and remote monitoring, with redundancy parallel operation function, can realize parallel operation for over 10pcs UPS.
Main Features
• High precise pure sine waveform output
• Excellent microprocessor control guarantees high reliability
• Built-in super smart charger , 90% fully charged in 4 hours
• Resistant to loads' dramatical fluctuation
• AC start(cold start)
• Auto restart function when AC recovering
• Full protection: Overload, discharge, and overcharge protection
MODELCDP-2KCDP-3KCDP-5KCDP-6K
Rated power2KVA/1.6KW3KVA/2.4KW5KVA/4KW6KVA/4.8KW
INPUT
Rated voltageSingle phase 81-145 VAC / 162-290 VAC
Frequency60/50 Hz (Auto sensing)
Max power3KVA4.5KVA7.5KVA9KVA
OUTPUT
Rated voltageSingle phase 220V±1%
Frequency50Hz±0.5% / 50Hz±0.5%
Harmonic DistortionTHD ≤3% for linear loads; THD ≤5% for non-linear loads
Overloading capacitylast 10 mins for 120% overload 120%
Current Crest Ratio3:1
BATTERY
Rated voltage192Vdc
Battery type12V sealed maintenance-free battery
Battery Number16 nos.
Back-up time(min)13865
Charging time9 hours recover to 90% capacity
System
Transfer timeAC←→battery 0 ms;AC←→bypass < 1 ms
Ingress ProtectionIP20
Conversion Efficiency≥85%(full loading)
noise<50dB (1 meter)<53dB (1 meter)
ENVIRONMENT
temperature0℃~45℃
Humidity0~95% RH,non-condensing
altitude<1500m
Size
W×D×H(mm)260×620×625
Weight
N. weight (kg)758095100

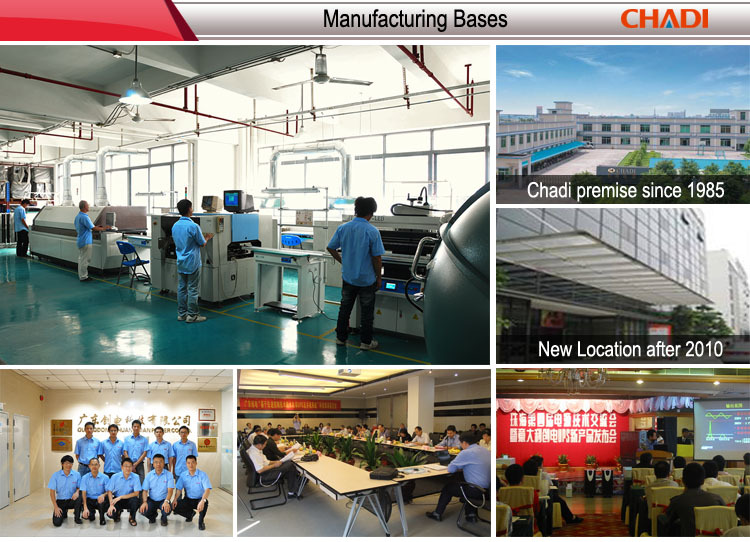

Company Information

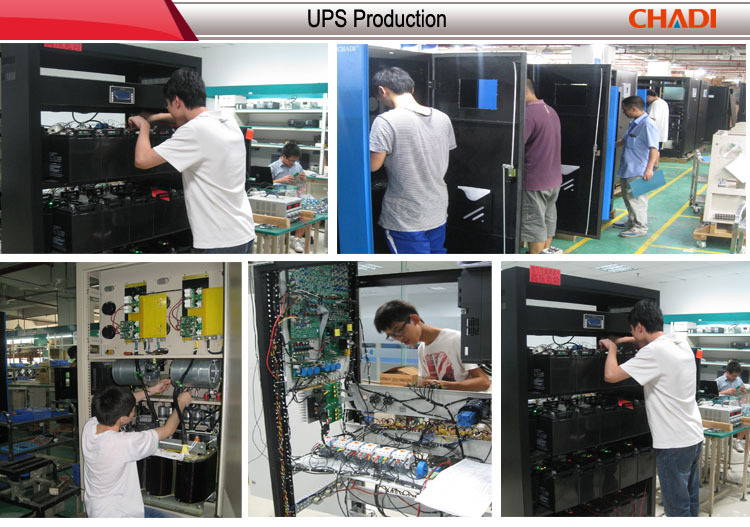

Production Flow
